Leo Zovic: Profiling `house`. Again.

via Planet Lisp by on Mon, 21 Dec 2020 05:10:24 GMT

So I've plowed some of my vacation time into polishing up/hacking on some old projects. Including house, the web server I complained was garbage, but still had one distinct advantage over other Common Lisp webservers. Namely; because it's the only natively implemented one, it will work out-of-the-box, without issue, anywhere you can install quicklisp and a LISP it runs on.

This hacking attempt was aimed at addressing the complaint. Most of the major-overhaul branch was aimed at making the code more readable and sensical. Making handlers and http-types much simpler, both implementationally and conceptually. But I want to throw at least a little effort at performance. With that in mind, I wanted a preliminary benchmark. I'm following fukamachis' procedure for woo. Note that, since house is a single-threaded server (for now), I'm only doing single-threaded benchmarks.

; SLIME 2.26
CL-USER> (ql:quickload :house)
To load "house":
  Load 1 ASDF system:
    house
; Loading "house"
.....
(:HOUSE)
CL-USER> (in-package :house)
#<PACKAGE "HOUSE">
HOUSE> (define-handler (root) () "Hello world!")
#<HANDLER-TABLE {1004593CF3}>
HOUSE> (house:start 5000)

inaimathi@this:~$ wrk -c 10 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 10 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     1.01ms    5.85ms 204.63ms   98.73%
    Req/Sec     2.64k     0.89k    7.22k    62.16%
  104779 requests in 10.10s, 30.58MB read
  Socket errors: connect 0, read 104775, write 0, timeout 0
Requests/sec:  10374.93
Transfer/sec:      3.03MB
inaimathi@this:~$ wrk -c 10 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 10 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     2.74ms   19.05ms 408.54ms   98.18%
    Req/Sec     2.58k     0.85k    4.64k    57.39%
  102543 requests in 10.10s, 29.92MB read
  Socket errors: connect 0, read 102539, write 0, timeout 0
Requests/sec:  10152.79
Transfer/sec:      2.96MB
inaimathi@this:~$ wrk -c 100 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 100 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     4.56ms   59.54ms   1.66s    99.27%
    Req/Sec     3.10k     1.83k    9.56k    76.72%
  103979 requests in 10.01s, 30.34MB read
  Socket errors: connect 0, read 103979, write 0, timeout 4
Requests/sec:  10392.46
Transfer/sec:      3.03MB
inaimathi@this:~$ wrk -c 100 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 100 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     8.49ms   85.22ms   1.66s    98.81%
    Req/Sec     3.23k     2.16k   11.90k    81.01%
  102236 requests in 10.01s, 29.83MB read
  Socket errors: connect 0, read 102232, write 0, timeout 4
Requests/sec:  10215.87
Transfer/sec:      2.98MB
inaimathi@this:~$

So that puts house comfortably in the same league as Tornado on PyPy or the node.js server. This is not a bad league to be in, but I want to see if I can do better.

Step 1 - Kill Methods

defmethod is a thing I was seemingly obsessed with when I wrote house. This isn't necessarily a bad thing from the legibility perspective; because they have type annotations, it's clearer what an expected input is from a reading of the code. However, there's two disadvantages to using methods where you don't have to.

1. You'll often get a no-defined-method error on weird input, rather than something more descriptive and specific the way you probably would when using a normal function
2. Your performance will sometimes irredeemably suck.

The first point is a nit, but the second one is worth dealing with in the context of a library that should probably perform reasonably well at least some of the time. The cause of that problem is that methods can't be inlined. Because the point of them is to dispatch on a type-table of their arguments at runtime, they can't do their work at compile-time to inline the result without some serious trickery¹. Today, I'm avoiding trickery and just re-writing every method in house that I can into a function, usually by using etypecase.

Some of these are trivial conversions

;;; house.lisp
...
-(defmethod start ((port integer) &optional (host usocket:*wildcard-host*))
+(defun start (port &optional (host usocket:*wildcard-host*))
+  (assert (integerp port))
...
-(defmethod process-ready ((ready stream-server-usocket) (conns hash-table))
-  (setf (gethash (socket-accept ready :element-type 'octet) conns) nil))
-
-(defmethod process-ready ((ready stream-usocket) (conns hash-table))
+(defun process-ready (ready conns)
+  (assert (hash-table-p conn))
+  (etypecase ready
+    (stream-server-usocket (setf (gethash (socket-accept ready :element-type 'octet) conns) nil))
+    (stream-usocket
...
-(defmethod parse-cookies ((cookie string))
+(defun parse-cookies (cookie)
+  (assert (stringp cookie))
...
-(defmethod handle-request! ((sock usocket) (req request))
+(defun handle-request! (sock req)
...
-(defmethod error! ((err response) (sock usocket) &optional instance)
-  (declare (ignorable instance))
+(defun error! (err sock)
,,,

;;; session.lisp
...
-(defmethod new-session-hook! ((callback function))
+(defun new-session-hook! (callback)
...
-(defmethod poke! ((sess session))
+(defun poke! (sess)
...

;;; util.lisp
...
-(defmethod path->uri ((path pathname) &key stem-from)
+(defun path->uri (path &key stem-from)
...
-(defmethod path->mimetype ((path pathname))
+(defun path->mimetype (path)
...

Some are slightly more complicated. In particular, parse looks like it would conflate two entirely separate functions, but on inspection, we know the type of its argument at every call site.

./house.lisp:46:		      (setf (parameters (request buf)) (nconc (parse buf) (parameters (request buf)))))
./house.lisp:68:	   do (multiple-value-bind (parsed expecting) (parse buffer)
./house.lisp:92:(defmethod parse ((str string))
./house.lisp:110:(defmethod parse ((buf buffer))
./house.lisp:116:	(parse str))))

So, we can convert parse to two separate, named functions. write! is basically the same situation.

;;; house.lisp
...
-(defmethod parse ((str string))
+(defun parse-request-string (str)
...
-(defmethod parse ((buf buffer))
+(defun parse-buffer (buf)
...
-(defmethod write! ((res response) (stream stream))
+(defun write-response! (res stream)
...
-(defmethod write! ((res sse) (stream stream))
+(defun write-sse! (res stream)
...

Not pictured; changes at each call-site to call the correct one.

The parse-params method is a bit harder to tease out. Because it looks like it genuinely is one polymorphic function. Again, though, on closer inspection of the fully internal to house call-sites makes it clear that we almost always know what we're passing as arguments at compile-time.

./house.lisp:78:(defmethod parse-params (content-type (params null)) nil)
./house.lisp:79:(defmethod parse-params (content-type (params string))
./house.lisp:83:(defmethod parse-params ((content-type (eql :application/json)) (params string))
./house.lisp:107:	(setf (parameters req) (parse-params nil parameters))
./house.lisp:113:	(parse-params
					 (->keyword (cdr (assoc :content-type (headers (request buf)))))
					 str)

That "almost" is going to be a slight pain though; we need to do a runtime dispatch inside of parse-buffer to figure out whether we're parsing JSON or a param-encoded string.

...
-(defmethod parse-params (content-type (params null)) nil)
-(defmethod parse-params (content-type (params string))
+(defun parse-param-string (params)
   (loop for pair in (split "&" params)
-     for (name val) = (split "=" pair)
-     collect (cons (->keyword name) (or val ""))))
-
-(defmethod parse-params ((content-type (eql :application/json)) (params string))
-  (cl-json:decode-json-from-string params))
+	for (name val) = (split "=" pair)
+	collect (cons (->keyword name) (or val ""))))
...
-	(parse-params
-	 (->keyword (cdr (assoc :content-type (headers (request buf)))))
-	 str)
-	(parse str))))
+	(if (eq :application/json (->keyword (cdr (assoc :content-type (headers (request buf))))))
+	    (cl-json:decode-json-from-string str)
+	    (parse-param-string str))
+	(parse-request-string str))))
...

The last one is going to be a headache. The lookup method is meant to be a general accessor, and has a setf method defined. I'm not going that way right now; lets see if we gained anything with our current efforts.

Second verse same as the first.

; SLIME 2.26
CL-USER> (ql:quickload :house)
To load "house":
  Load 1 ASDF system:
    house
; Loading "house"
.....
(:HOUSE)
CL-USER> (in-package :house)
#<PACKAGE "HOUSE">
HOUSE> (define-handler (root) () "Hello world!")
#<HANDLER-TABLE {1004593CF3}>
HOUSE> (house:start 5000)

inaimathi@this:~/quicklisp/local-projects/house$ wrk -c 10 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 10 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     0.96ms    4.02ms  76.87ms   98.43%
    Req/Sec     2.70k     0.98k    7.57k    73.83%
  103951 requests in 10.10s, 30.34MB read
  Socket errors: connect 0, read 103947, write 0, timeout 0
Requests/sec:  10292.48
Transfer/sec:      3.00MB
inaimathi@this:~/quicklisp/local-projects/house$ wrk -c 10 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 10 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency   846.32us    2.63ms  58.29ms   98.26%
    Req/Sec     2.64k     0.94k   11.13k    72.89%
  102661 requests in 10.10s, 29.96MB read
  Socket errors: connect 0, read 102658, write 0, timeout 0
Requests/sec:  10165.46
Transfer/sec:      2.97MB
inaimathi@this:~/quicklisp/local-projects/house$ wrk -c 100 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 100 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     8.57ms   90.07ms   1.66s    98.96%
    Req/Sec     3.71k     2.87k   11.73k    74.30%
  105162 requests in 10.10s, 30.69MB read
  Socket errors: connect 0, read 105159, write 0, timeout 2
Requests/sec:  10412.91
Transfer/sec:      3.04MB
inaimathi@this:~/quicklisp/local-projects/house$ wrk -c 100 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 100 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     5.69ms   70.32ms   1.66s    99.25%
    Req/Sec     3.06k     1.82k    9.46k    74.40%
  101302 requests in 10.10s, 29.56MB read
  Socket errors: connect 0, read 101299, write 0, timeout 3
Requests/sec:  10030.14
Transfer/sec:      2.93MB
inaimathi@this:~/quicklisp/local-projects/house$

Aaand it looks like the effect was neglegible. Oh well. I honestly think that the untangling we've done so far makes the parts of the codebase that its' touched more readable, so I'm keeping them, but there's no great improvement yet. Perhaps if we inline some things?

;;; package.lisp
-(declaim (inline crlf write-ln idling? flex-stream))
+(declaim (inline crlf write-ln idling? flex-stream write-response! write-sse! process-ready parse-param-string parse-request-string))

wrk -c 10 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 10 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     1.71ms   15.37ms 412.51ms   98.91%
    Req/Sec     2.69k     0.91k    6.28k    65.37%
  103607 requests in 10.10s, 30.24MB read
  Socket errors: connect 0, read 103603, write 0, timeout 0
Requests/sec:  10258.44
Transfer/sec:      2.99MB
inaimathi@this:~/quicklisp/local-projects/house$ wrk -c 10 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 10 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency   837.49us    2.66ms  58.36ms   98.36%
    Req/Sec     2.63k   836.52     3.81k    49.37%
  103449 requests in 10.10s, 30.19MB read
  Socket errors: connect 0, read 103446, write 0, timeout 0
Requests/sec:  10242.91
Transfer/sec:      2.99MB
inaimathi@this:~/quicklisp/local-projects/house$ wrk -c 100 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 100 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     6.23ms   74.76ms   1.89s    99.08%
    Req/Sec     4.01k     2.20k   10.23k    58.89%
  101524 requests in 10.10s, 29.63MB read
  Socket errors: connect 0, read 101522, write 0, timeout 4
Requests/sec:  10052.56
Transfer/sec:      2.93MB
inaimathi@this:~/quicklisp/local-projects/house$ wrk -c 100 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 100 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     5.75ms   70.98ms   1.67s    99.27%
    Req/Sec     3.19k     2.11k   10.26k    81.39%
  100944 requests in 10.01s, 29.46MB read
  Socket errors: connect 0, read 100941, write 0, timeout 1
Requests/sec:  10088.23
Transfer/sec:      2.94MB

Again, no huge difference. On closer inspection, lookup is only used in one place internally, and it's easy to replace with gethash so I'm just going to do that and re-check real quick.

;;; channel.lisp
...
-  (push sock (lookup channel *channels*))
+  (push sock (gethash channel *channels*))
...

inaimathi@this:~/quicklisp/local-projects/house$ wrk -c 10 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 10 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     0.95ms    3.72ms  72.70ms   98.43%
    Req/Sec     2.66k     1.00k   11.52k    73.45%
  102839 requests in 10.10s, 30.01MB read
  Socket errors: connect 0, read 102835, write 0, timeout 0
Requests/sec:  10183.46
Transfer/sec:      2.97MB
inaimathi@this:~/quicklisp/local-projects/house$ wrk -c 10 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 10 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     0.87ms    2.85ms  59.32ms   98.19%
    Req/Sec     2.62k     0.86k    3.87k    54.82%
  102818 requests in 10.10s, 30.00MB read
  Socket errors: connect 0, read 102814, write 0, timeout 0
Requests/sec:  10180.62
Transfer/sec:      2.97MB
inaimathi@this:~/quicklisp/local-projects/house$ wrk -c 100 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 100 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     6.96ms   80.03ms   1.68s    99.10%
    Req/Sec     3.11k     2.12k   11.72k    78.40%
  105460 requests in 10.10s, 30.78MB read
  Socket errors: connect 0, read 105456, write 0, timeout 5
Requests/sec:  10441.77
Transfer/sec:      3.05MB
inaimathi@this:~/quicklisp/local-projects/house$ wrk -c 100 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 100 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     8.22ms   83.95ms   1.66s    98.84%
    Req/Sec     3.19k     2.07k   11.66k    73.23%
  103933 requests in 10.10s, 30.33MB read
  Socket errors: connect 0, read 103930, write 0, timeout 5
Requests/sec:  10290.43
Transfer/sec:      3.00MB

To no ones' great surprise, still not much of a difference. I'm going to let the lookup issue dangle for the moment, because it has to do with a trick I want to pull a bit later on, but before we get to that...

Step 2 - Kill Classes

The second step is to kill class definitions entirely. Their accessor functions are also generic, and therefore rely on method dispatch. structs are a bit clumsier, but probably faster in the end. Now, we can't really mess with session, request and response, because those are part of houses' external interface, but there's three places where we can replace defclass with defstruct.

Re-writing buffer, sse and handler-entry ...

;;; model.lisp
...
-(defclass sse ()
-  ((id :reader id :initarg :id :initform nil)
-   (event :reader event :initarg :event :initform nil)
-   (retry :reader retry :initarg :retry :initform nil)
-   (data :reader data :initarg :data)))
...
-(defclass buffer ()
-  ((tries :accessor tries :initform 0)
-   (contents :accessor contents :initform nil)
-   (bi-stream :reader bi-stream :initarg :bi-stream)
-   (total-buffered :accessor total-buffered :initform 0)
-   (started :reader started :initform (get-universal-time))
-   (request :accessor request :initform nil)
-   (expecting :accessor expecting :initform 0)))
...
-(defclass handler-entry ()
-  ((fn :reader fn :initarg :fn :initform nil)
-   (closing? :reader closing? :initarg :closing? :initform t)))
...

;;; house.lisp
...
-(defun write-sse! (res stream)
-  (format stream "~@[id: ~a~%~]~@[event: ~a~%~]~@[retry: ~a~%~]data: ~a~%~%"
-	  (id res) (event res) (retry res) (data res)))
...
-(defun buffer! (buffer)
-  (handler-case
-      (let ((stream (bi-stream buffer)))
-	(incf (tries buffer))
-	(loop for char = (read-char-no-hang stream)
-	   until (or (null char) (eql :eof char))
-	   do (push char (contents buffer))
-	   do (incf (total-buffered buffer))
-	   when (request buffer) do (decf (expecting buffer))
-	   when (and #-windows(char= char #\linefeed)
-		     #+windows(char= char #\newline)
-		 (line-terminated? (contents buffer)))
-	   do (multiple-value-bind (parsed expecting) (parse-buffer buffer)
-		(setf (request buffer) parsed
-		      (expecting buffer) expecting
-		      (contents buffer) nil)
-		(return char))
-	   when (> (total-buffered buffer) +max-request-size+) return char
-	   finally (return char)))
-    (error () :eof)))
...
-(defun parse-buffer (buf)
-  (let ((str (coerce (reverse (contents buf)) 'string)))
-    (if (request buf)
-	(if (eq :application/json (->keyword (cdr (assoc :content-type (headers (request buf))))))
-	    (cl-json:decode-json-from-string str)
-	    (parse-param-string str))
-	(parse-request-string str))))
...

;;; define-handler.lisp
+(defstruct handler-entry
+  (fn nil)
+  (closing? t))
...
-    (make-instance
-     'handler-entry
+    (make-handler-entry

;;; channel.lisp
...
+(defstruct (sse (:constructor make-sse (data &key id event retry)))
+  (id nil) (event nil) (retry nil)
+  (data (error "an SSE must have :data") :type string))
...
-(defun make-sse (data &key id event retry)
-  (make-instance 'sse :data data :id id :event event :retry retry))
+(defun write-sse! (res stream)
+  (format stream "~@[id: ~a~%~]~@[event: ~a~%~]~@[retry: ~a~%~]data: ~a~%~%"
+	  (ss-id res) (sse-event res) (sse-retry res) (sse-data res)))
...

;;; buffer.lisp
+(in-package :house)
+
+(defstruct (buffer (:constructor make-buffer (bi-stream)))
+  (tries 0 :type integer)
+  (contents nil)
+  (bi-stream nil)
+  (total-buffered 0 :type integer)
+  (started (get-universal-time))
+  (request nil)
+  (expecting 0 :type integer))
+
+(defun buffer! (buffer)
+  (handler-case
+      (let ((stream (buffer-bi-stream buffer)))
+	(incf (buffer-tries buffer))
+	(loop for char = (read-char-no-hang stream)
+	   until (or (null char) (eql :eof char))
+	   do (push char (buffer-contents buffer))
+	   do (incf (buffer-total-buffered buffer))
+	   when (buffer-request buffer) do (decf (buffer-expecting buffer))
+	   when (and #-windows(char= char #\linefeed)
+		     #+windows(char= char #\newline)
+		 (line-terminated? (buffer-contents buffer)))
+	   do (multiple-value-bind (parsed expecting) (parse-buffer buffer)
+		(setf (buffer-request buffer) parsed
+		      (buffer-expecting buffer) expecting
+		      (buffer-contents buffer) nil)
+		(return char))
+	   when (> (buffer-total-buffered buffer) +max-request-size+) return char
+	   finally (return char)))
+    (error () :eof)))
+
+(defun parse-buffer (buf)
+  (let ((str (coerce (reverse (buffer-contents buf)) 'string)))
+    (if (buffer-request buf)
+	(if (eq :application/json (->keyword (cdr (assoc :content-type (headers (buffer-request buf))))))
+	    (cl-json:decode-json-from-string str)
+	    (parse-param-string str))
+	(parse-request-string str))))

... should get us _something. Right?

inaimathi@this:~/quicklisp/local-projects/house$ wrk -c 10 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 10 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     1.09ms    6.18ms 202.73ms   98.55%
    Req/Sec     2.69k     0.89k    4.02k    56.74%
  105108 requests in 10.10s, 30.67MB read
  Socket errors: connect 0, read 105105, write 0, timeout 0
Requests/sec:  10406.92
Transfer/sec:      3.04MB
inaimathi@this:~/quicklisp/local-projects/house$ wrk -c 10 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 10 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     0.98ms    5.78ms 204.47ms   98.86%
    Req/Sec     2.67k   848.77     3.98k    54.71%
  104242 requests in 10.10s, 30.42MB read
  Socket errors: connect 0, read 104242, write 0, timeout 0
Requests/sec:  10321.40
Transfer/sec:      3.01MB
inaimathi@this:~/quicklisp/local-projects/house$ wrk -c 100 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 100 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     6.93ms   79.75ms   1.66s    99.10%
    Req/Sec     3.33k     2.46k   11.95k    79.87%
  105920 requests in 10.10s, 30.91MB read
  Socket errors: connect 0, read 105918, write 0, timeout 2
Requests/sec:  10487.59
Transfer/sec:      3.06MB
inaimathi@this:~/quicklisp/local-projects/house$ wrk -c 100 -t 4 -d 10 http://127.0.0.1:5000
Running 10s test @ http://127.0.0.1:5000
  4 threads and 100 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     4.78ms   61.11ms   1.68s    99.30%
    Req/Sec     2.83k     1.26k    7.01k    70.22%
  103381 requests in 10.10s, 30.17MB read
  Socket errors: connect 0, read 103378, write 0, timeout 0
Requests/sec:  10235.14
Transfer/sec:      2.99MB

Very little noticeable gain, I'm afraid. Ok, there's one more thing I'm tempted to try. There were hints earlier that this was coming, including this, but if you don't follow my github you might still be surprised.

Step 3 - Musing on CLJ

Now that we have what I think is a reasonably fast implementation of house, I want to see whether² [clj](https://github.com/inaimathi/clj) does performance damage to the implementation. I want to see this because, the clj datastructures and syntax really improve readability and REPL development; there's a bunch of situations in which I missed having that level of visibility into my structures before I even began this benchmark article. There's even probably a few places where it saves some performance by referencing other partial structures. The problem is that I'm guessing it's a net negative in terms of performance, so I want to see what a conversion would do to my benchmark before I go through with it.

This is going to be especially useful for houses' external interface. And given that I've already had to break compatibility to write this overhaul, this is probably the best possible time to test the theory. The trouble is that I'm not entirely sure what the real interface looks like quite yet, so I'm not going to be implementing it today. These are just some musings.

The current house model for handler/response interaction is that a handler returns either a response (in the event of a redirect!) or a string (in any other event). This makes a few things kind of difficult. Firstly, it means that session and header manipulation has to happen by effect. That is, they're not included as part of the return value; they have to be exposed in some other way. In the case of headers, it's via an alist bound to the invisible symbol headers inside of the handler body. This ... is less than ideal.

If we take the http-kit approach, we'd expect our handlers to always return a map. And if that map had slots for headers/session, those things would be set as appropriate in the outgoing response and/or server state. Our input would also be a map. And it would naturally contain method/headers/path/parameters/session/etc slots that a handler writer would want to make use of. I'm not entirely clear on whether we'd want to make this the primary internal and external representation, or if we're just looking for an easily manipulated layer for the users. I'm leaning towards the first of those options.

This ... actually doesn't sound too hard if cut at the right level. Lets give it a shot, I guess.

It wasn't.

There's enough weird shit happening here that I need a fresh brain for it. That was enough for now. The main roadblock I hit is that it turns out that a lot more of the internal interface here depends on mutation than I thought. This is bad for readability and coceptual simplicity, but good in the sense that I can move away from these models first, then see about integrating clj later.

I'll probably take another run up this hill later, but for now, I think I'm moving on to other issues.

1. Wait, why use methods then? They're good specifically in the situation where you want to establish an interface for a set of datastructures that you expect to have to extend outside of your library. If all the extension is going to happen inside, you can still make the argument that etypecase is the right way to go. But if you want the callers of your code to be able to define new behaviors for datastructures they specify themselves, then absolutely reach for defmethod.↩
2. More realistically, "how much" rather than "whether"↩

Micha Herda: Quicklisp Stats

via Planet Lisp by on Sun, 20 Dec 2020 18:18:11 GMT

            ;;; How many times was Alexandria downloaded in Nov 2020?
QUICKLISP-STATS> (system-downloads :alexandria 2020 11)
13731

;;; Get all systems that were downloaded
;;; more than 10000 times in Nov 2020
;;; and print them somewhat nicely
QUICKLISP-STATS> (loop with stats = (month 2020 4)
                       with filtered-stats
                         = (remove-if-not (lambda (x) (< 10000 (cdr x))) stats)
                       for (system . count) in filtered-stats
                       do (format t ";; ~20A : ~5D~%" system count))
;; alexandria           : 19938
;; cl-ppcre             : 15636
;; bordeaux-threads     : 14974
;; trivial-features     : 14569
;; split-sequence       : 14510
;; closer-mop           : 14482
;; trivial-gray-streams : 14259
;; babel                : 14254
;; cffi                 : 12365
;; flexi-streams        : 11940
;; iterate              : 11924
;; named-readtables     : 11205
;; cl-fad               : 10996
;; usocket              : 10859
;; anaphora             : 10783
;; trivial-backtrace    : 10693
NIL

;;; How many downloads did Bordeaux Threads
;;; have over all of 2020?
QUICKLISP-STATS> (loop for ((year month) . data) in (all)
                       for result = (a:assoc-value data "bordeaux-threads"
                                                   :test #'equal)
                       do (format t ";; ~4,'0D-~2,'0D: ~D~%" year month result))
;; 2020-01: 16059
;; 2020-02: 12701
;; 2020-03: 17123
;; 2020-04: 14974
;; 2020-05: 14489
;; 2020-06: 13851
;; 2020-07: 14130
;; 2020-08: 10843
;; 2020-09: 13757
;; 2020-10: 13444
;; 2020-11: 15825
NIL



sirherrbatka: Manardb

via Planet Lisp by on Sat, 19 Dec 2020 00:00:00 GMT

Neil Munro: Common Lisp Tutorial 10b: Basic Classes

via Planet Lisp by on Fri, 11 Dec 2020 21:33:23 GMT

Introduction

In this tutorial I explain how to start using classes in Common Lisp, it is mostly focused on learning about slots (properties), how to use them, what options are available on slots and how to initialise a class.

Common Lisp Tutorial 10b: Basic Classes

A simple example

A simple class can be created with the defclass macro:

1
2
(defclass person ()
  (name age))

It can be initialised with the following code, please be aware however that one does not use new or some factory-pattern named function to build an instance, Common Lisp has a different way, make-instance:

1
(make-instance 'person)

It is possible to get started with code this simple, using the slot-value function with setf to get/set the values stored in the slots:

(defclass person ()
  (name age))

(let ((p (make-instance 'person)))
  (setf (slot-value p 'name) 'bob)
  (setf (slot-value p 'age) 24)
  (format nil "~A: ~A" (slot-value p 'name) (slot-value p 'age)))

Alternatively one can also use with-slots to achieve the same result, the slot names are setf-able and can be read and written to easily!

(defclass person ()
  (name age))

(let ((p (make-instance 'person)))
  (with-slots (name age) p
    (setf name 'bob)
    (setf age 28)
    (format nil "~A: ~A" name age)))

There's a lot more one can do with classes though, in fact there are 8 options that can be passed to a slot, each extend the behavior in useful ways and are listed below:

Correction

A previous version of this article incorrectly claimed there was no way to get/set the slots.

initarg

The initarg option is used to set the value of slots at class initilisation, you do not have to use the same keyword as the slot name!

Example

1
2
3
4
5
6
7
(defclass person ()
    ((name :initarg :name)))

; When you create an object, you can set the slot value like so
(let ((p (make-instance 'person :name "Fred")))
        (with-slots (name) p
            (format t "~A~%" name)))

initform

The initform option is used to set the default value of slots at class initilisation, if no value is given.

Example

1
2
3
4
5
6
7
(defclass person ()
    ((name :initform "Fred")))

; When you create an object, you can set the slot value like so
(let ((p (make-instance 'person)))
    (with-slots (name) p
        (format t "~A~%" name)))

reader

The reader option allows you to have a function created for you to access the value stored in a slot. It is worth noting you can have as many :reader options as you like!

Example

1
2
3
4
5
6
(defclass person ()
    ((name :initarg :name :reader name)))

; You can then use the function like so
(let ((p (make-instance 'person)))
    (format t "~A~%" (name p)))

writer

The writer option allows you to have a function created for you to change the value stored in a slot. It is worth noting you can have as many :writer options as you like!

Example

1
2
3
4
5
6
7
(defclass person ()
    ((name :initarg :name :reader name :writer set-name)))

; You can then use the function like so
(let ((p (make-instance 'person)))
    (set-name "Fred" p)
    (format t "~A~%" (name p)))

accessor

A setf-able function that can be used to both read and write to the slot of a class instance.

Example

1
2
3
4
5
6
(defclass person ()
    ((name :initarg :name :accessor name)))

(let ((p (make-instance 'person)))
    (setf (name p) "Fred")
    (format t "~A~%" (name p)))

allocation

Determines if a slot exists on the class directly and is therefore shared amonst all instances or if the slot is unique to each instance, the two options to allocation are :class or :instance. By default slots are allocated to :instance and not :class.

Example

1
2
3
4
5
6
7
8
(defclass person ()
    ((name :initarg :name :allocation :instance :accessor name)
     (species :initform "human" :allocation :class :accessor species)))

(let ((p  (make-instance 'person :name "Fred"))
      (p1 (make-instance 'person :name "Bob")))
    (setf (species p1) "not human")
    (format t "~A: ~A~%" (name p) (species p)))

documentation

The documentation option is to assist the programmer understand the purpose of a slot. Forgive such a trivial example below as what a name slot on a person object is going to be is pretty self-evident, but in other cases maybe not so much.

Example

1
2
(defclass person ()
    ((name :documentation "The persons name")))

type

The type option is another hint to programmers, it is important to note that despite appearances it is not an enforced type, it confused me at first but it's just a hint, alongside :documentation.

Correction

zellerin has very kindly corrected this particular section, thank you!

To quote the HyperSpec

The :type slot option specifies that the contents of the slot will always be of the specified data type. It effectively declares the result type of the reader generic function when applied to an object of this class. The consequences of attempting to store in a slot a value that does not satisfy the type of the slot are undefined. The :type slot option is further discussed in Section 7.5.3 (Inheritance of Slots and Slot Options).

So be warned, this is not a hint to programmers, it is a promise to the compiler, and if you break that promise, anything can happen. This means that :type is more than a hint to programmers!

It is possible to see how to enforce the use of types throws a type error using locally safety optimized code like so:

1
2
3
(locally (declare (optimize (safety 3)))
  (defclass foo () ((a :initarg :a :type integer)))
  (make-instance 'foo :a 'a))

Example

1
2
(defclass person ()
    ((name :type string)))

Tutorial

The code from the video is listed here for your convenience.

1
2
3
4
5
6
7
8
9
10
(defclass person ()
  ((name :initarg    :name    :initform "Bob"   :accessor name    :allocation :instance :type string  :documentation "Stores a persons name")
   (age  :initarg    :age     :initform 18      :accessor age     :allocation :instance :type integer :documentation "Stores a persons age")
   (species :initarg :species :initform "human" :accessor species :allocation :class)))

(let ((p1 (make-instance 'person :name 145)))
  (setf (species p1) "not-human")

  (let ((p2 (make-instance 'person :name "Fred" :age 34)))
    (format nil "~A: ~A (~A)" (name p2) (age p2) (species p2))))

References

• declare
• defclass
• format
• let
• locally
• make-instance
• optimize
• safety
• setf
• slot-value
• with-slots

Marco Antoniotti: Iron handling (with Emacs Lisp)

via Planet Lisp by on Sun, 06 Dec 2020 19:10:00 GMT

At the beginning of the pandemic I stumbled upon an article regarding the problems that the State of New Jersey was having in issuing relief checks and funding due to the lack of ... COBOL programmers.  At the time I followed a couple of links, landing on this "Hello World on z/OS" blog post.  I was curious and obviously looking for something other than my usual day job, plus, I swear, I had never written some COBOL code.

What follows is a report of the things I learned and how I solved them.  If you are easily bored, just jump to the end of this (long) post to check out the IRON MAIN Emacs Lisp package.

A Foray in the Big Iron Internet

Well, to make a long story short, I eventually installed the Hercules emulator (and other ones - more on this maybe later) in its SDL/Hyperion incarnation and installed MVS on it; the versions I installed are TK4- and a "Jay Moseley" build (special thanks to Jay, who is one of the most gracious and patient people I interacted with over the Internet).  I also installed other "big iron" OSes, e.g., MTS, on the various emulators and experimented a bit (again, maybe I will report on this later).

It has been a lot of fun, and I discovered a very lively (if grizzled) community of enthusiasts, who mostly gathers around a few groups.io groups, e.g., H390-MVS.  The community is very helpful and, at this point, very similar, IMHO, to the "Lisp" communities out there, if you get my drift.

Anyway, Back to hacking

One way to interact with "the mainframe" (i.e., MVS running on Hercules) is to write your JCL in your host system (Linux, Windows, Mac OS) and then to submit it to a simulated card reader listening over a socket (port 3505, which is meaningful to the IBM mainframe crowd).  JCL code is interesting, as is the overall forma mentis that is required to interact with the mainframe, especially for somebody who was initially taught UNIX, saw some VMS and a few hours of Univac Exec 8. In any case, you can write your JCL, where you can embed whole Assembler, COBOL, Fortran, PL/I etc code, using some editor on Windows, Linux or Mac OS etc.

Of course, Lisp guys know that there is one Editor, with its church. So, what one does is to list-all-packages and install jcl-mo...  Wait...

To the best of my knowledge, as of December 2020, there is no jcl-mode to edit JCL code in Emacs.

It immediately became a categorical imperative to build one, which I did, while learning a bit of Emacs Lisp, that is, all the intricacies of writing modes and eventually post them on MELPA.

Writing the IRON MAIN Emacs Lisp Package

Writing a major mode for Emacs in 2020 is simple in principle, but tricky in practice, especially, if, like me, you start with only a basic knowledge of the system as a user.

One starts with define-derived-mode and, in theory, things should be relatively easy from there on.  The first thing you want to do is to get your font-lock-mode specifications right.  Next you want to add some other nice visual tools to your mode.  Finally you want to package your code to play nice with the Emacs ecosystem.

Font Lock

Font Lock mode (a minor mode) does have some quirks that make it a bit difficult to understand without in depth reading of the manual and of the (sparse) examples one finds over the Internet.  Of course, one never does enough RTFM, but I believe a few key points should be reported here.

Font Lock mode does two "fontification" operations/passes.  At least this seem the way to interpret them.

1. A search based one: where "keywords" are "searched" and "highlighted" (read: they are rendered according to the face declared for them).
2. A syntax table one: where fontification is performed based on properties set for a given character in a syntax table.

To interact with Font Lock, a mode must eventually set the variable font-lock-defaults.  The specification of the object contained in this variable is complicated.  This variable is eventually a list with at least one element (the "keywords"); the optional second one controls whether the syntax table pass (2) is performed or not. I found that the interaction between the first two elements must be carefully planned.  Essentially you must decide whether you want only the search based ("keyword") fontification or the syntax table based (2) fontification too.

If you do not want the syntax table based (2) fontification then you want to have the second element of font-lock-defaults set to non-NIL.

The first element of font-lock-defaults is where most of the action is.  Eventually it becomes the value of the variable font-lock-keywords that Font Lock uses to perform search based fontification (1).  The full range of values that font-lock-keywords may assume is quite rich; eventually its structure is just a list of "fontificators". There are two things to note however, which I found very useful.

First, Font Lock applies each element of font-lock-keywords (i.e., (first font-lock-defaults)) in order.  This means that a certain chunk of text may be fontified more than once.  Which brings us to the second bit of useful information.

Each element that eventually ends up in font-lock-keywords may have the form

(matcher . subexp-highlighter)
where subexp-highligther = (subexp facespec [override [laxmatch]])

(see the full documentation for more details).

Fontification is not applied to chunks of text that have already been fontified, unless override is set to non-NIL.  In this case the current fontification is applied.  This is very important for things like strings and comments, which may interact in unexpected ways, unless you are careful with the order of font-lock-keywords.

I suggest you download and use the wonderful library font-lock-studio by Anders Lindgren to debug your Font Lock specifications.

Ruler mode

When you write lines, pardon, cards for MVS or z/OS it is nice to have a ruler to count on that tells you at what column you are (and remember that once you hit column 72 you'd better... continue).  Emacs has a built in nice little utility that does just that: a minor mode named ruler-mode, which shows a ruler in the top row of your buffer.

There is a snag.

Emacs counts columns from 0.  MVS, z/OS and friends count columns from 1.  Popping up the ruler of ruler-mode in a buffer containing JCL (or COBOL, or Fortran) shows that you are "one off": not nice.

Almost luckily, in Emacs 27.x (which is what I am using) you can control this behavior using the variable column-number-indicator-zero-based, which is available when you turn on the minor mode column-number-mode. Its default is t, but if you set it to nil, the columns in the buffer will start at 1, which is "mainframe friendly".  Alas, this change does not percolate (yet - it needs to be fixed in Emacs) to ruler-mode, which insists on counting from 0.

End of story: some - very minor - hacking was needed to fix the rather long "ruler function" to convince it to count columns from 1.

Packaging

Is there a good way to do this?

It appears that most Emacs "packages" are one-file affairs.  The package I wrote needs to be split up in a few files, but it is unclear (remember that I never do enough RTFM) how to keep thinks together for distribution, e.g., on MELPA or, more simply in your Emacs load-path.

What I would like to achieve is to just do a load (or a load-library) of a single file that caused the loading of the other bits and pieces.  It appears that Emacs Lisp does not have an ASDF or a MK:DEFSYSTEM as you have in Common Lisp (I will be glad to be proven wrong), so, as my package is rather small after all, I resorted to writing a main file that is named after the library and which can be thus referenced in the -pkg.el file that Emacs packaging requires.  I could have used use-package, but its intent appear to be dealing with packages that are already "installed" in your Emacs environment.

MELPA comes with it recipes format to register your package; it is a description of your folder structure and it is useful, but it is something you need to submit separately to the main site, let me add, in a rather cumbersome way. Quicklisp is far friendlier.

One other rant I have with the Emacs package distribution sites (e.g., MELPA and El-Get) is that eventually they assume you are on UN*X (Linux) and require you to have installed bits and pieces of the traditional UN*X toolchain (read: make) or worse.  I am running on W10 these days and there must be a better way.

Bottom line: I created a top file (iron-main.el) which just sets up a few things and requires and/or loads the other files that are part of or needed by the package.  One of the files contains the definition of a minor mode called iron-main-mode (in an eponymous .el file).

I am wondering whether this is the best way of doing things in Emacs Lisp.  Please tell me in the comments section.

The IRON MAIN Emacs Lisp Package

At the end of the story, here is the link to the GitHub repository for the IRON MAIN Emacs package to interact with the mainframe.

As you see the package is rather simple.

It is essentially three files plus the "main" one and a few ancillary ones.

• iron-main.el: the main "loader" file.

• iron-main-mode.el: the minor mode invoked by the other major modes defined below.

• jcl-mode.el: a major mode to handle JCL files (pardon, datasets).

• asmibm-mode.el: a major mode to handle IBM Assemblers.


One of the nice things I was able to include in jcl-mode is the ability to submit the buffer content (or another .jcl file, pardon, dataset) to the mainframe card reader listening on port 3505 (by default, assuming such a card reader has been configured).

This turns out to be useful, because it allows you to avoid using netcat, nc.exe or nc64.exe, which, at least on W10, always trigger Windows Defender.  Plus everything remains integrated with Emacs.  Remember: there's an Emacs command for that!

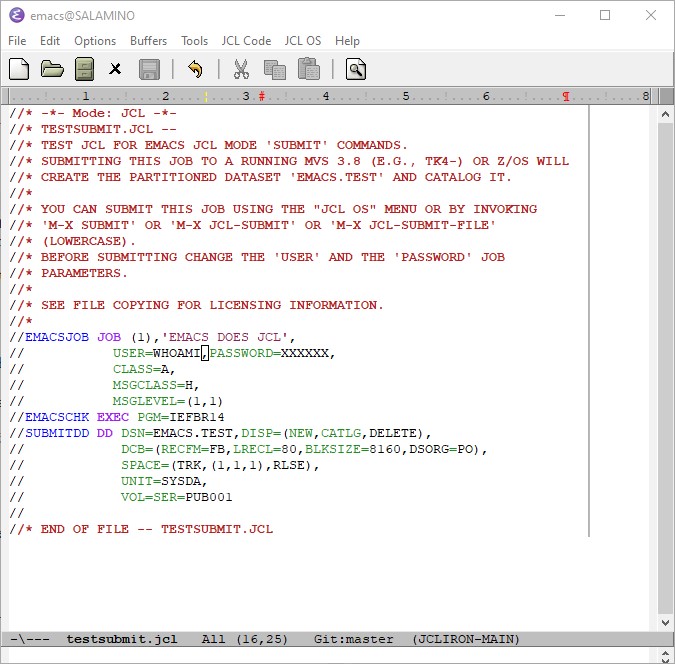

To conclude here are two screenshots (one "light", one "dark") of a test JCL included in the release. Submitting it form Emacs to  TK4- and to a "Jay Moseley's build" seems to work pretty well.  Just select the Submit menu under JCL OS or invoke the submit function via M-x.

What's next?  A few things apart from cleaning up, like exploring polymode; after all, embedding code in JCL is not unheard of.

That's it.  It has been fun and I literally learned a lot of new things.  Possibly useful.

If you are a mainframe person, do jump on the Emacs bandwagon.  Hey, you may want to write a ISPF editor emulator for it  😏😄

(cheers)

MA
